Welding Elbows Technical Answers: A Beginner’s Guide

Contents

• Introduction
• Basic Classification of Welded Elbows
• How to Choose the Right Welded Elbow
• Key Points for Elbow Installation and Welding
• FAQ
• Maintenance and Care
• Summary

Introduction

Welded elbows are common connecting components in piping systems, primarily used to change the flow of pipes.

They are widely used in the petroleum, chemical, and construction industries.

For those new to welded elbows, questions may arise regarding their classification, selection, and welding methods.

Below, I will address several common questions.

For more information on our production, please follow us on YouTube and LinkedIn.

Basic Classification of Welded Elbows

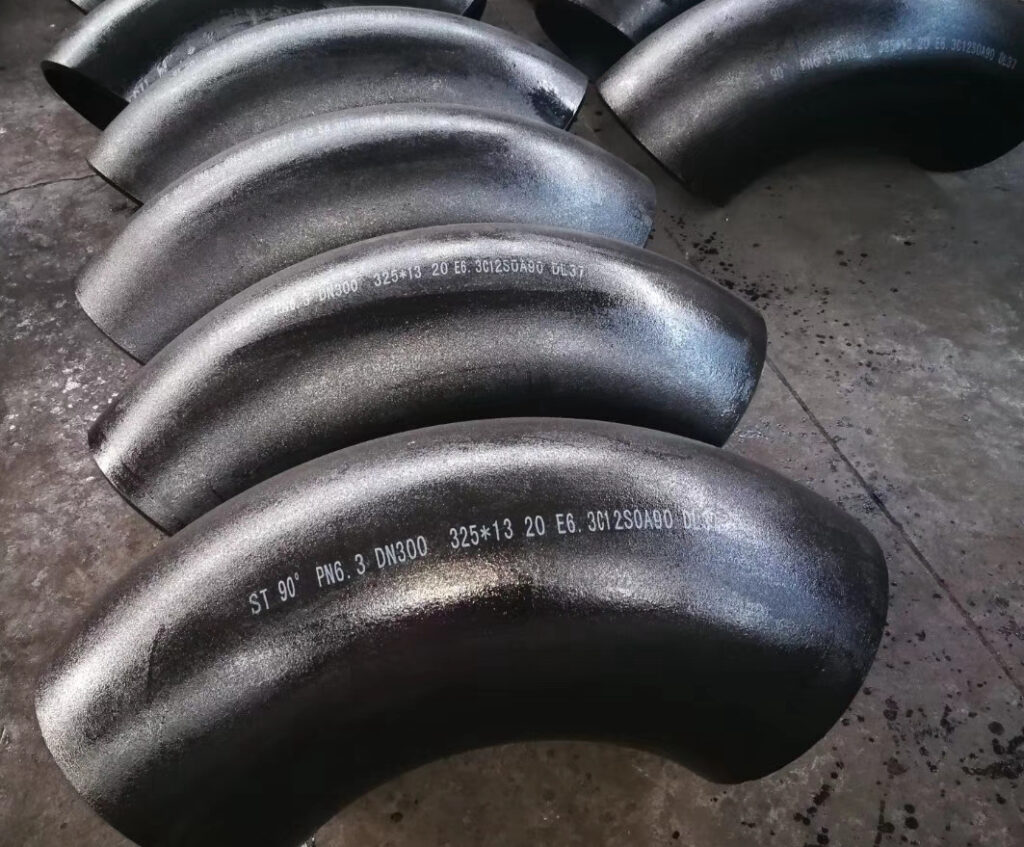

Welded elbows are categorized by angle into three common types: 45-degree, 90-degree, and 180-degree.

The 90-degree elbow is the most widely used. Based on the manufacturing process, elbows can be divided into push-formed elbows, pressed elbows, and welded elbows.

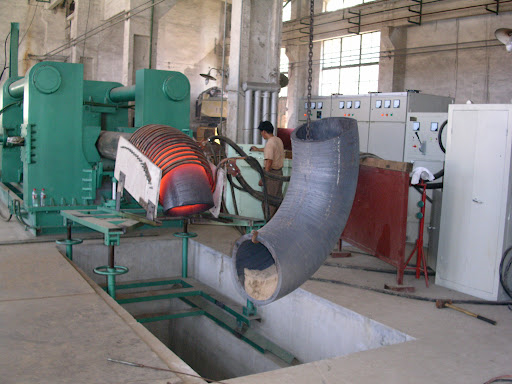

Push-formed elbows: Formed through a hot-pressing process, they offer uniform wall thickness and are suitable for high-pressure pipes.

Pressed elbows: Formed through cold pressing using a mold, they are lower cost and suitable for general applications.

Welded elbows: Constructed from multiple welded sections, they are suitable for large-diameter pipes or pipes with special requirements.

Elbows can also be categorized by material, including carbon steel, stainless steel, and alloy steel.

Different materials offer varying corrosion resistance and strength, so the choice should be based on actual needs.

How to Choose the Right Welded Elbow

Pipeline Media: When transporting corrosive media, stainless steel or alloy steel elbows are recommended; carbon steel elbows can be used for ordinary water or gas.

Working Pressure: For high-pressure environments, thicker push-type elbows should be used; for low-pressure environments, pressed elbows can be used to reduce costs.

Installation Space: 45-degree elbows are suitable for applications requiring smooth turns, 90-degree elbows are suitable for right-angle turns, and 180-degree elbows are used for U-shaped return pipes.

Also, pay attention to the elbow connection method. Common options include butt welding, socket welding, and flange connections, which must match the pipe.

Key Points for Elbow Installation and Welding

The installation quality of welded elbows directly impacts the safety and lifespan of piping systems. Key steps include:

• Beveling: Before welding, the elbow and pipe joints must be beveled to ensure a smooth weld surface and enhance weld strength.
• Alignment: Before welding, the elbow and pipe must be aligned to avoid misalignment or eccentricity, which can compromise sealing.
• Welding Process: TIG welding is typically used for the base, followed by manual metal arc welding for the filler and capping. Welding current and speed must be controlled to avoid burn-through or incomplete penetration.
• Post-weld Inspection: After welding, visual inspection and nondestructive testing (such as X-rays or ultrasonic testing) are performed to ensure the weld is free of defects such as cracks and pores.

FAQ

Q: What causes weld cracking?
A: Weld cracking may be caused by excessive welding stress or material mismatch. Preheating and post-weld heat treatment can reduce stress.

Q: What are the solutions for internal wall corrosion?
A: If the medium is corrosive, corrosion-resistant materials or an internal lining can be used.

Q: How can installation deviation be prevented?
A: During installation, use a level and measuring tools to calibrate the pipe to avoid uneven stress on the pipe due to deviation.

Maintenance and Care

Welded elbows require regular inspection during use, especially for pipes exposed to high pressure or corrosive environments.

It is recommended to periodically inspect the welds for cracks, corrosion, or deformation. Repair or replace any problems promptly.

Summary

The selection, installation, and maintenance of welded elbows require careful planning based on specific operating conditions.

Proper material selection, welding process, and regular inspections can effectively extend their service life and ensure the safe operation of the piping system.

If you have further questions about welded elbows, please contact Metleader technical engineers for comprehensive technical assistance.
