Analysis of Carbon Steel Pipeline Corrosion: Prevention and Solutions
Introduction
Carbon steel pipeline corrosion has always been a major concern in industrial applications. Preventing and resolving carbon steel pipeline corrosion within the entire pipeline system is a major challenge for all steel manufacturers.
More importantly, pipeline corrosion significantly increases project costs and operational risks. Therefore, a thorough understanding of the causes, preventative measures, and solutions for carbon steel pipeline corrosion is crucial to ensuring project safety and reliability.
To learn more about Metleader pipelines, follow us on YouTube and LinkedIn.
Chemical element composition of carbon steel pipe
The main chemical components of carbon steel pipes include carbon, silicon, manganese, phosphorus, and sulfur. Carbon is one of the main components of carbon steel pipes, and its content has a significant impact on the performance of the pipe.
As the carbon content increases, the strength and hardness of the carbon steel pipe increase, but the plasticity and toughness decrease accordingly. Silicon in carbon steel pipes can increase the strength and hardness of the steel, but it also reduces the plasticity and toughness of the steel.
Manganese plays a role in deoxidation and desulfurization in carbon steel pipes, and can also increase the strength and hardness of the steel.
Phosphorus can improve the strength and corrosion resistance of steel, but excessive amounts can reduce the plasticity and toughness of the steel.
Sulfur is generally considered a harmful element in carbon steel pipes because it reduces the plasticity and toughness of the steel and increases the brittleness of the steel.
Effect of alloying elements on the properties of carbon steel pipes
In addition to the basic chemical composition described above, carbon steel pipes may also contain alloying elements such as chromium, nickel, and molybdenum to improve performance or meet specific application requirements.
Chromium improves steel’s oxidation and corrosion resistance and is often used in the manufacture of corrosion-resistant steel pipes.
Nickel increases steel’s strength and toughness while maintaining good ductility and is often used in the manufacture of high-strength and high-toughness steel pipes.
Molybdenum improves steel’s high-temperature resistance and creep resistance, making it suitable for applications in high-temperature environments.
Why is carbon steel susceptible to corrosion?
Carbon steel is susceptible to rust primarily due to its high carbon content. When moisture and oxygen in the air react chemically with iron, iron oxide (rust) forms. Here are the main reasons why carbon steel rusts:
High Carbon Content
Carbon steel typically contains more than 2% carbon. This high carbon content causes the steel’s crystal structure to become more compact, reducing its corrosion resistance.
Iron-Oxygen Reaction
When the surface of carbon steel comes into contact with water or air, the iron in it reacts with oxygen to form iron oxide (rust). This reaction is particularly pronounced in humid environments.
Acidic and Alkaline Environments
Carbon steel is also susceptible to rust in acidic or alkaline environments. Acidic and alkaline substances can damage the protective film on the steel’s surface, making it more susceptible to oxidation.
Impurities
Carbon steel may contain other impurities, such as sulfur and phosphorus. These impurities reduce the steel’s corrosion resistance and make it more susceptible to rust.
Lack of protective layer
If the surface of carbon steel is not properly treated with anti-corrosion treatment, such as galvanizing, spraying, etc., then the moisture and oxygen in the air can easily come into direct contact with the steel, causing rust.
Classification of Carbon Steel Pipe Corrosion
The corrosion of carbon steel pipes can be divided into many types, such as general corrosion, pitting corrosion, stress corrosion, etc. In actual use, it is necessary to classify them according to the specific situation and take corresponding anti-corrosion measures.
Causes of corrosion of carbon steel pipelines
Carbon steel pipeline corrosion occurs when oxygen, moisture, acids, and alkalis in the medium react chemically or electrochemically with the pipe surface.
Corrosion is irreversible and can severely impact the safety and service life of carbon steel pipes. The main causes are as follows:
- Oxygen in the medium: Oxygen combines with the iron in the steel to form iron oxides, which promote rust corrosion.
- Moisture in the medium: Moisture reacts with carbon dioxide to produce carbonic acid, which causes coking corrosion. Moisture also causes oxygen to accumulate on the pipe surface, increasing the risk of corrosion.
- Acids and alkalinity in the medium: Acidic and alkaline substances in the medium can cause chemical reactions on the pipe surface, leading to nodular corrosion or pitting corrosion.
- Steel pipe material: Carbon steel pipes are composed of a carbon and iron alloy, which is easily oxidized to form iron oxides, which promote rust corrosion.
- Surface treatment: Untreated or improperly treated steel pipe surfaces are prone to various corrosion issues.
Treatment methods for carbon steel pipeline corrosion
Mechanical treatment
Mechanical treatment is a simple and effective method for removing rust from the pipe surface using tools such as scrapers and files.
For obvious rusted areas, a grinder or wire brush can be used to remove the rust, followed by a coating of anti-rust paint.
Chemical treatment
Iron oxide can be converted into stable compounds through chemical reactions such as pickling and passivation, achieving the purpose of rust removal.
Pickling involves contacting the surface of carbon steel pipes with an acidic substance to corrode the iron oxides on the pipe surface and then remove any residual acid by washing.
Passivation involves a chemical reaction of a passivating agent onto the steel surface, forming a stable compound layer to prevent corrosion.
Methods to Prevent Corrosion of Carbon Steel Pipelines
To prevent corrosion in carbon steel pipelines, appropriate measures are necessary, primarily focusing on the following aspects:
Pipe material selection
In harsh environments, 304 or 316 stainless steel, or corrosion-resistant alloy steel pipes such as molybdenum and titanium, can be selected. For carbon steel pipelines, special steels such as low-temperature steel and corrosion-resistant steel can be used to improve their corrosion resistance.

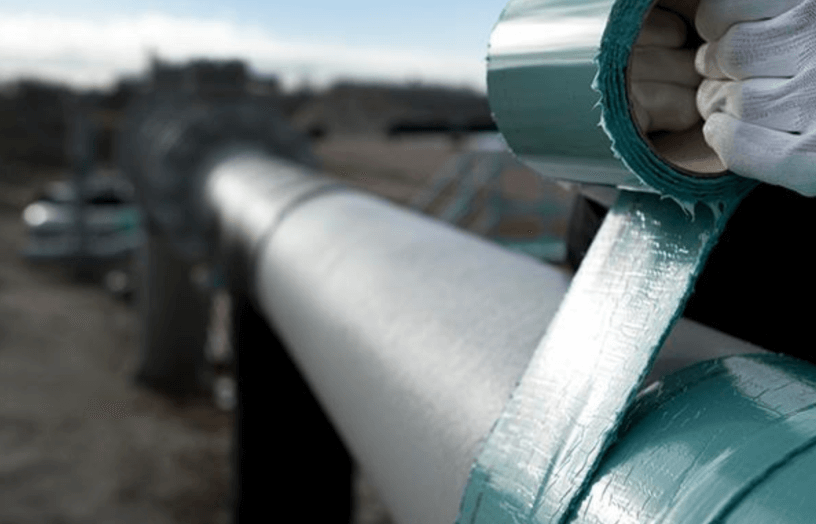

Coating protection
Applying an anti-corrosion coating to the pipeline surface can effectively prevent corrosion. Common coatings include epoxy, polyurethane, and acrylic. When repainting, pay attention to choosing the right coating and strictly control the thickness and quality of the coating.
Environmental protection
When installing pipelines, avoid humid and rainy locations. Strengthen the drainage system to prevent the pipelines from being exposed to moisture for extended periods of time. For the environment surrounding the pipelines, temperature and humidity control or chemical or electrochemical protection methods can be used to create a corrosion-resistant environment.
Pipeline inspection
Regularly inspect carbon steel pipelines to detect damage and corrosion, allowing appropriate repair measures to be taken. The detection methods mainly include visual inspection, magnetic particle inspection, ultrasonic inspection, radioactive inspection, etc.
Choices in Application
- Normal environments: Galvanized carbon steel pipes are sufficient.
- Harsh environments (chemical plants, offshore platforms): Stainless steel composite pipes or a combined coating + cathodic protection solution are required.
- Economical trade-off: Carbon steel pipes cost only 1/3-1/2 of stainless steel, but maintenance costs must be comprehensively evaluated.
Summarize
We’ve explained the causes, prevention methods, and solutions for carbon steel pipe corrosion above, focusing on the key corrosion factors.
We believe this will help us better select the right pipes, implement preventive measures, and extend their service life.
