Detailed Analysis of ASTM A53 Steel Pipe: An Advanced Guide
Content
- Introduction
- What is A53 Steel Pipe?
- What is the American steel pipe standard?
- Common Classifications of American Steel Pipe Standards
- ASTM-A53Gr.B Steel Pipe
- Applications of A53 Steel Pipe
- Parameters of A53 Steel Pipe
- Material Performance Analysis
- Summary
Introduction
ASTM A53 steel pipe, as an important structural material, is widely used in construction, machinery, chemicals, oil and gas, and other fields. Different applications require different standards for steel pipe. This article will focus on the American steel pipe standard and its common types.
The A53 standard covers various types of steel pipe, including galvanized and black pipe. Product types include seamless, ERW, and furnace-welded pipe. We hope this article is helpful. To learn more about Metleader steel pipe, follow us on YouTube and LinkedIn.

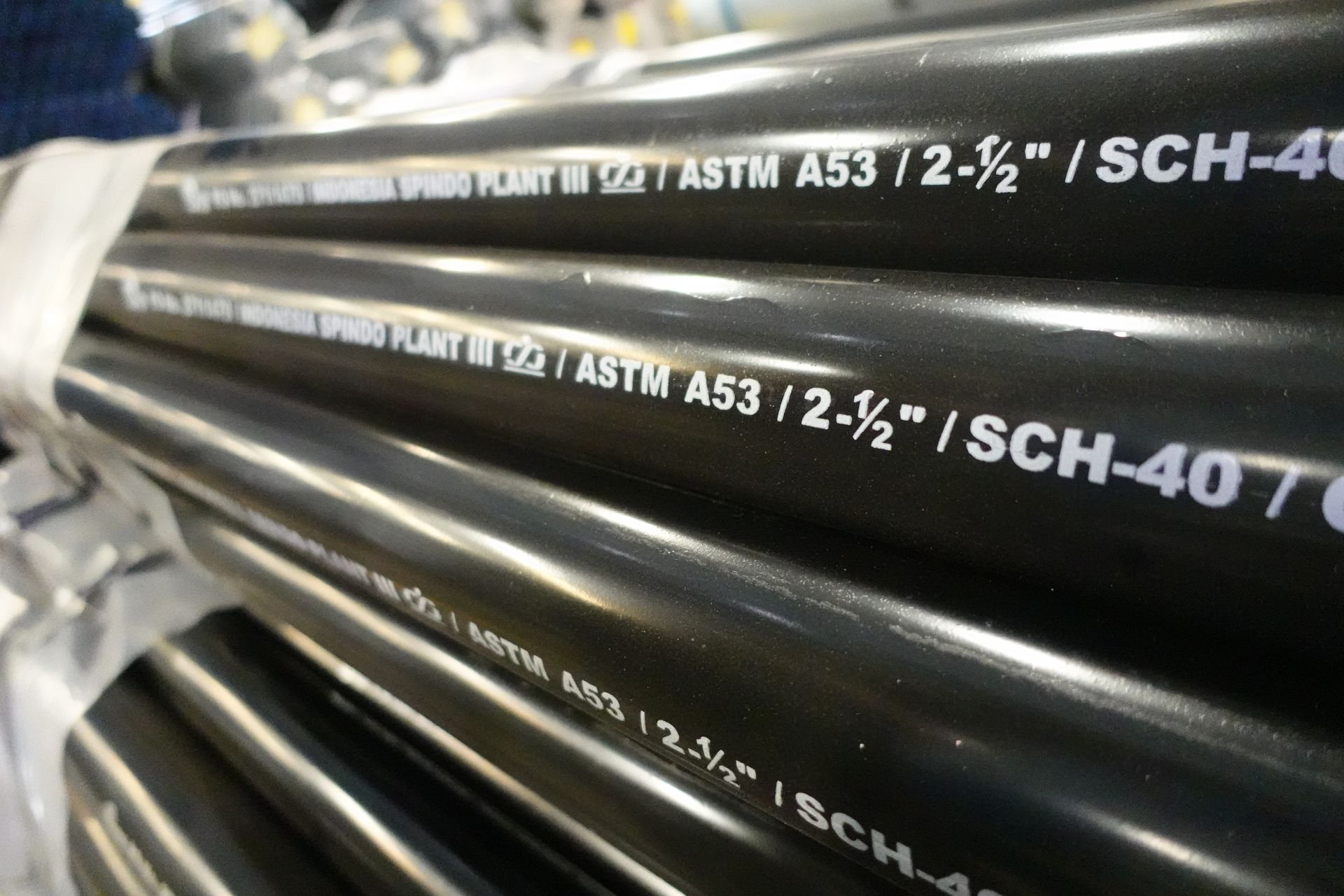

What is A53 Steel Pipe?
A53 steel pipe is a carbon steel pipe standard established by ASTM. Its full name is “ASTM A53 – Seamless and Welded Steel Pipe.” It is primarily classified into two types:
Seamless steel pipe (Type S): Produced through hot rolling or cold drawing, it has no welds and offers greater pressure resistance, making it suitable for high-pressure applications.
Welded steel pipe (Type E/F): Type E is electric resistance welded (ERW), while Type F is furnace welded. These pipes are more cost-effective and are primarily used for low-pressure fluid transportation.
What is the American steel pipe standard?
American steel pipe standards are mainly formulated by ASTM, API, etc., and the standards that can be adopted for steel pipes vary according to their uses.
Common classification of American steel pipe standards
Common American steel pipe standards include ASTM A53, ASTM A106, API 5L, etc.

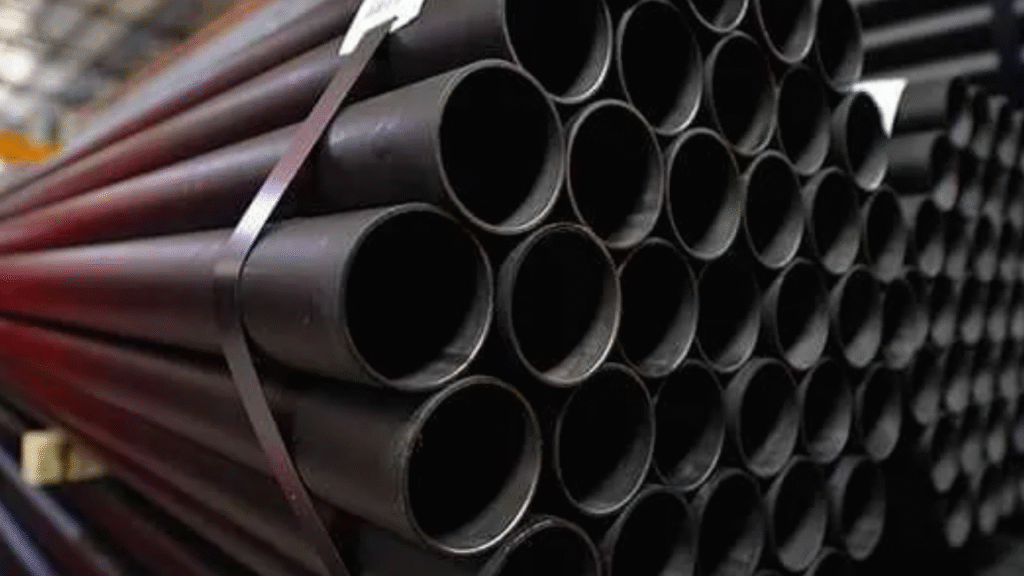

ASTM A53 Steel Pipe Standards
ASTM A53 is the US ASTM standard for seamless and welded carbon steel pipe, divided into two grades: A and B. Grade A is plain carbon structural steel without a clear chemical marking, suitable for general use, while Grade B offers higher tensile strength and is commonly used in high-pressure and high-temperature environments.
ASTM A53 standard steel pipe is suitable for use in construction, machinery, chemicals, petroleum, and natural gas industries.
ASTM A106 Steel Pipe Standards
ASTM A106 is the American ASTM standard for seamless carbon steel pipe, suitable for high-temperature, high-pressure applications. This steel pipe is used for heater and boiler piping, as well as for conveying high-pressure fluids and gases.
It offers high strength, heat resistance, and corrosion resistance, while also offering good processability.
API 5L Steel Pipe Standards
API 5L is a standard for line pipe developed by the American Petroleum Institute for conveying oil, gas, water, and other fluids.
The API 5L standard has five different composition grades, ranging from A to X100. Each grade has different composition and strength, suitable for different transportation applications.

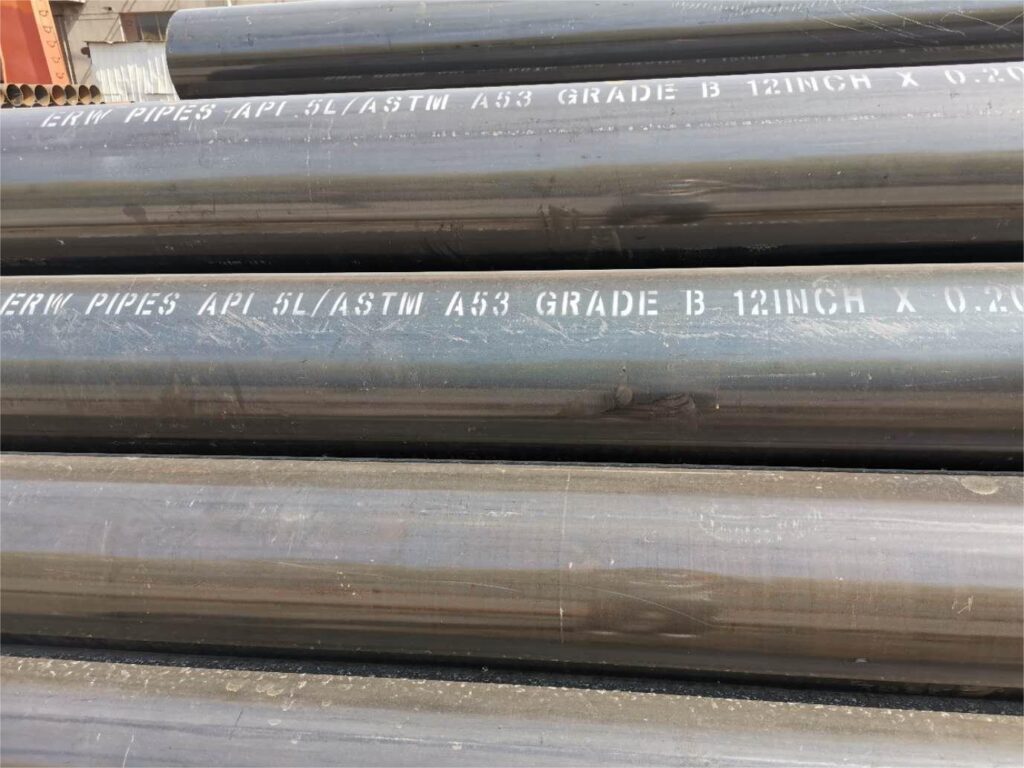

ASTM-A53Gr.B Steel Pipe
ASTM-A53Gr.B seamless steel pipe is a widely used steel pipe product in the industrial sector.
It is a common material specified by the American Society for Testing and Materials (ASTM). Due to its excellent mechanical properties and applicability, this steel pipe plays an important role in the oil, gas, chemical, and construction industries.
Applications of A53 Steel Pipe
Main Applications:
- Building structure support (e.g., scaffolding);
- Low-pressure oil and natural gas pipelines;
- Water supply and fire protection system pipelines.
Parameters of A53 Steel Pipe
Outer diameter: 1/8″ to 26″; common wall thicknesses are indicated in Schedules 40 and 80.
Length: 6 or 12 meters are standard lengths, but custom lengths are also available.
Carbon content ≤ 0.3%, manganese content ≤ 1.2%, and sulfur and phosphorus impurities are strictly controlled (≤ 0.05%) to ensure weldability and corrosion resistance.
Material Performance Analysis
ASTM A53 specifies the technical requirements for black and hot-dip galvanized steel pipe.
ASTM A106 specifically addresses seamless carbon steel pipe for high-temperature service.
API 5L details the technical specifications for line pipe.
A106 Grade B Performance Specifications
The tensile strength must exceed 415 MPa, the yield strength must be at least 240 MPa, and the elongation must be at least 16.5%. In addition, it must pass the impact test and its impact energy must meet certain standards.
A53 Grade B Performance Specifications
The tensile strength also exceeds 415 MPa and the yield strength is at least 240 MPa. However, it does not require impact testing.
API 5L B Performance Requirements
The standard specifies requirements for the tensile strength and yield strength of materials, which must be greater than 414 MPa and at least 241 MPa, respectively.
Furthermore, the requirements of specific clause a must be followed.
Performance of Other Standards
This standard does not provide specific mechanical property data, but generally the performance indicators of such materials will be similar to some of the above standards.
Summary
The above article details the standards, applications, and specifications for ASTM A53 steel pipe, hoping to help you make a better choice.
