Classification of elbows: in-depth analysis of elbow models, applications and characteristics

Contents

• Introduction
• What is an elbow?
• Elbow Classifications
  • Classification by Manufacturing Process
  • Classification by Bend Angle
  • Classification by Connection Method
• Elbow Parameters
  • Elbow Materials
  • Elbow Diameter
  • Elbow Angles
• Elbow Standards
• Elbow Technical Requirements
• Elbow Applications
• FAQs
• Summary

Introduction

Elbows are a common fitting in industrial piping. They change the direction and angle of a pipe, allowing the conveying medium to flow according to process requirements. A detailed understanding of the characteristics of elbows can help us better select the appropriate one.

This article details the categories, models, characteristics, and applications of elbows, providing a comprehensive understanding of elbow pipe fittings.

For more videos on elbow production, please follow us on YouTube and LinkedIn.

What is an elbow?

Elbows are fittings used to connect pipes in a piping system, used to change the direction and angle of the pipe. Elbows are generally used in pipelines that transport fluids such as liquids, gases, and steam.

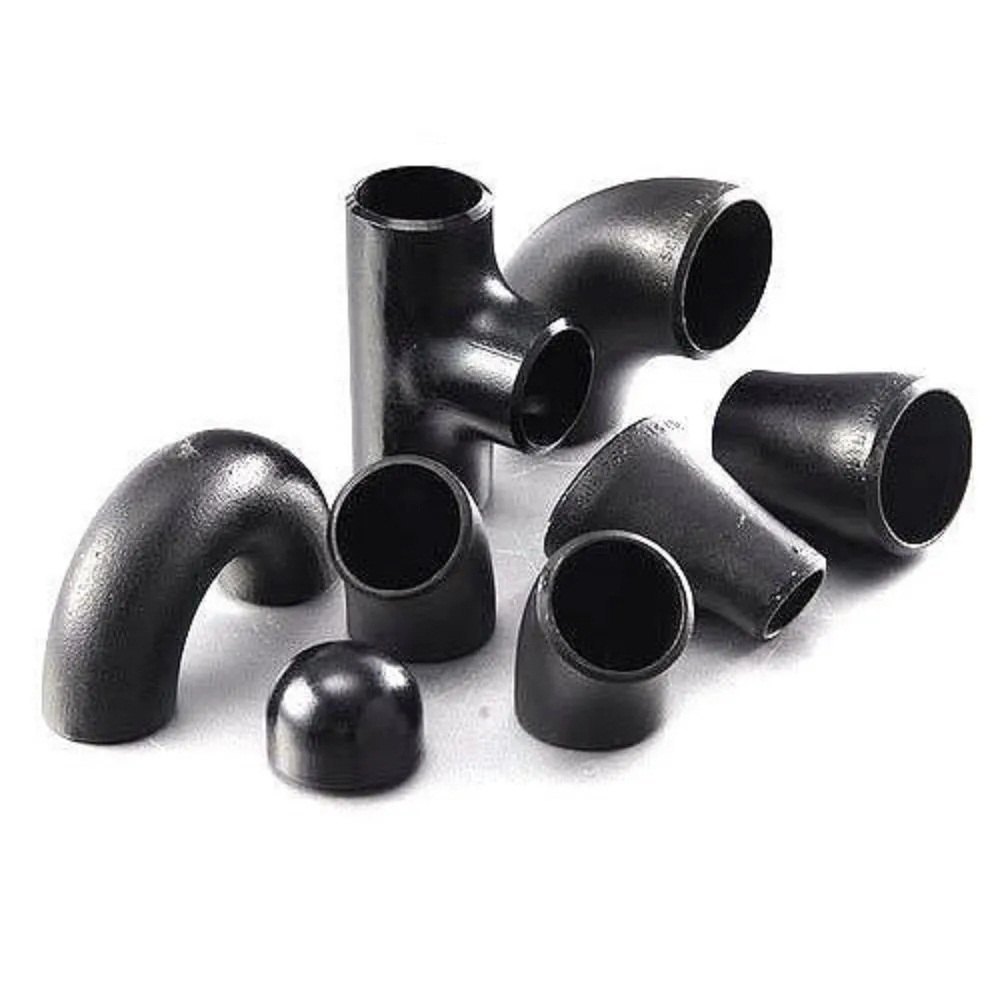

Elbow Classifications

According to different classification methods, elbows can be divided into many types:

Classification by Manufacturing Process

• Push-formed elbows: Cold-formed, smooth surface, and strong pressure-bearing capacity.
• Welded elbows: Made from multiple steel plate sections, they are low-cost but have a shorter lifespan.
• Cast elbows: Suitable for large-diameter pipes, but are heavy.

Classification by Bend Angle

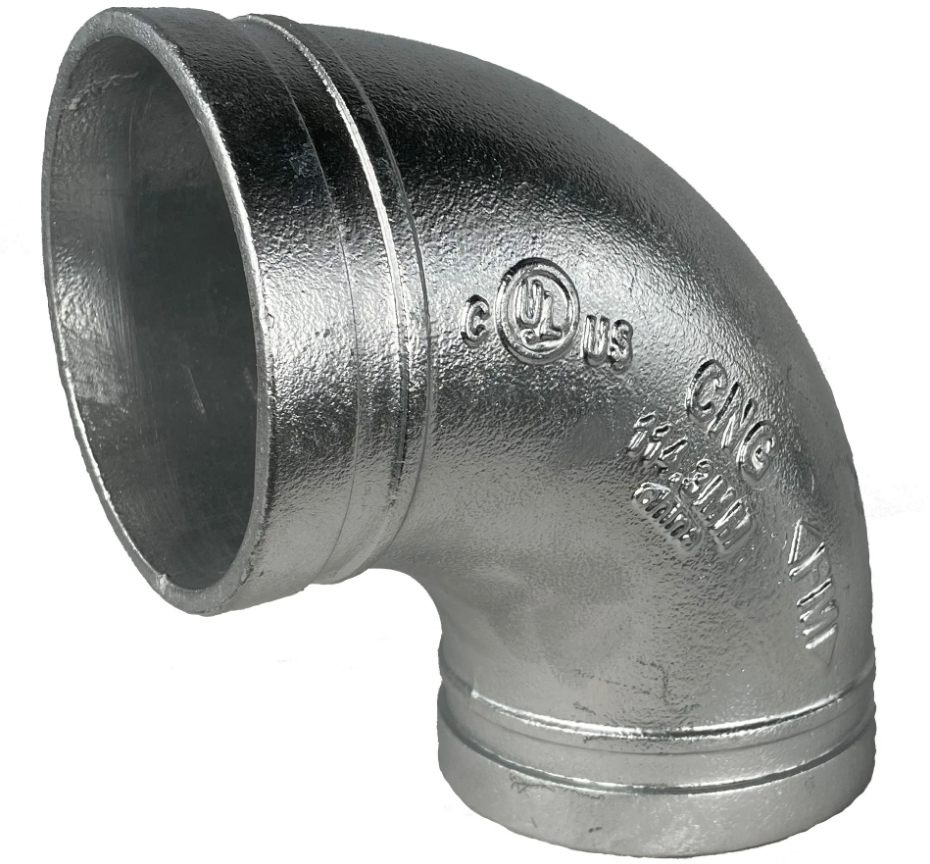

• 90° elbows: The most commonly used, accounting for over 70% of the market, used in vertically oriented piping systems.
• 45° elbows: Suitable for shallow angle turns, commonly found in water conservancy projects.
• 180° elbows: Create U-shaped return flows in pipes and are commonly used in chemical pipelines.

30° and 60° elbows: Non-standard custom products, accounting for less than 5%.

Classification by Connection Method

Elbow connection methods primarily include welding, threading, and flanges.

Welded elbows offer high strength and excellent sealing, making them suitable for high-pressure, high-temperature applications.

Threaded elbows are easy to install and suitable for low-pressure, low-temperature applications.

Flanged elbows are suitable for applications requiring frequent disassembly.

Elbow Parameters

The size, parameters, specifications and types of elbows are determined according to the needs of the project. The following are some common elbow sizes and parameters:

Elbow Materials

Stainless steel, carbon steel, alloy steel, aluminum, etc.

Elbow Diameter

The sizes from small to large include 1/2 inch, 3/4 inch, 1 inch, 1.5 inch, 2 inches, 3 inches, 4 inches, 5 inches, 6 inches, 8 inches, 10 inches, 12 inches, 14 inches, 16 inches, 18 inches, 20 inches, 24 inches and so on.

Elbow Angles

Elbows are typically available in various angles, including 15, 22.5, 30, 45, 60, and 90 degrees.

The thicker the elbow wall, the greater its strength and pressure resistance. Elbows are typically finished with a paint, galvanizing, or plastic spraying treatment.

Elbow Standards

Common elbow standards include JIS, ASME/ANSI, GB, HG, SH, GB/T, GB/T10752-1995, and CB/T3590-94.
Pressure rating: Must match the pipeline design pressure, with common ratings ranging from PN6 to PN100 (referring to ASME B16.9).

Dimensional tolerance:
Outer diameter deviation: ±1.5mm
Wall thickness tolerance: No more than 12.5% ​​of nominal thickness

Surface treatment:
Corrosion protection requirements: 3 layers of PE coating are required for coastal projects;
Food-grade applications: Internal surface finish Ra ≤ 0.8μm.
Adhering to these standards ensures elbows perform effectively in a variety of applications.

Elbow Technical Requirements

Processing Technology: Elbows are generally processed using two methods: cold bending and hot bending.

Cold bending is suitable for elbows with small diameters and large bend angles, while hot bending is suitable for elbows with large diameters and small bend angles.

Production Standards: Elbows are generally manufactured according to standards such as GB, HG, SH, and ASME, and manufacturers must comply with these requirements.

Inspection Requirements: Elbow inspection generally includes visual inspection, dimensional inspection, and hydrostatic testing to ensure that the elbow meets applicable requirements.

Elbow Applications

In industrial production, elbows are widely used in various types of pipelines, as follows:

1. Chemical pipelines: Elbows can be used to transport various chemical media, such as acids, alkalis, salts, and organic solvents.
2. Petroleum pipelines: Elbows can be used to transport oil, natural gas, and oil products.
3. Power pipelines: Elbows can be used to transport various types of power water and coolants.
4. Food pipelines: Elbows are used in the production of various foods and beverages, such as dairy products, juice, and beer.

FAQs

Q: Are there any requirements for the installation location of the elbow?
A: The installation location of the elbow should avoid causing fluid backflow or vortexes during flow.

Q: How do I choose the right elbow?
A: Choosing the right elbow requires consideration of factors such as the pipe cross-sectional shape, the flow rate of the conveying medium, temperature, pressure, and process requirements.

Q: Can seamless elbows be customized?
A: Yes, they can be customized. Common customization parameters include: Angles: Non-standard angles such as 30 degrees and 60 degrees; Sizes: Non-standard diameters or wall thicknesses; Materials: Special alloys or composite materials.

Q: What should I do if the elbow leaks?
A: Check for proper installation and retighten or replace the seals. Confirm that the material is suitable for the operating conditions and replace with corrosion-resistant materials if necessary. Ensure that the system pressure is within the rated range of the elbow.

Summary

Through this detailed introduction to elbows, we believe you’ve gained a more detailed understanding of their classification, applications, and specifications.
